How to Transport Oxygen Cylinders Safely in a Hospital

To transport oxygen cylinders safely in a hospital, secure each cylinder upright on a cart or rack so it cannot fall, slide or roll, keep the valve protected with its cap on until the cylinder is connected, and move at walking speed with the route clear. That is the short version of moving compressed gas cylinders in healthcare facilities, and almost every handling rule below traces back to one idea. A charged medical oxygen cylinder holds gas at very high pressure, and the valve is the weak point.

The single biggest hazard is a knocked-off valve. If a cylinder tips and the valve shears against a hard surface, the escaping gas can drive the cylinder across a room like a missile. That is why a loose, unsecured cylinder is never acceptable in transit, and why three jobs sit underneath every safe method. Secure the cylinder upright. Protect the valve. Control the movement. A rack, a chain or a strap does the first two. Walking speed and a working brake do the third.

Last updated June 2026. Heavy Duty Mobility equips facilities with handling carts, we do not write your safety program or prescribe clinical practice. The exact requirements that bind your hospital come from the named standards below and from your own facility's written policy, not from a vendor. Treat this guide as a plain-language map of those standards, then follow whichever your facility has adopted.

How do you transport oxygen cylinders safely in a hospital?

Transport oxygen cylinders in a hospital by securing each one upright in a cart or rack, with the valve protected and the cap on until use, restrained so it cannot fall, strike a surface or roll. Never carry a cylinder by its valve, never drag it, never roll it on its base, and never move a cylinder that is not held in place. Those are the rules a hospital writes into policy, and they apply to every porter, respiratory therapist, nurse and facilities tech who touches a cylinder.

The reason the upright-and-restrained rule sits at the top is the pressure inside. A small medical oxygen cylinder can hold gas at roughly 2,000 pounds per square inch when full. The cylinder body is built to contain that. The valve sticking out of the top is not. Knock the valve off and the cylinder vents its entire contents through a small opening in seconds, which is enough thrust to launch it. Securing the cylinder so it cannot tip is the whole point of a rack or a cart, and where this guide cites a number, it comes from a named standard or a manufacturer spec sheet listed at the end.

Which rules govern moving compressed gas cylinders in healthcare facilities?

Moving compressed gas cylinders in a US healthcare facility falls under OSHA 29 CFR 1910.101 and 1910.253, NFPA 99 for medical gas systems, and CGA guidance such as Pamphlet P-1, with the hospital setting its own written policy on top of all of them. No single document is the whole answer. The binding requirement is whichever standard your facility has adopted into its environment-of-care program, and this guide does not create a legal mandate of its own.

Start with OSHA. 29 CFR 1910.101, Compressed gases is the federal general-requirements rule, and it pulls the Compressed Gas Association's handling pamphlets in by reference, which is how CGA guidance becomes enforceable. 29 CFR 1910.253, Oxygen-fuel gas welding and cutting covers storage and the separation of oxygen from fuel gases, including the rule that oxygen and fuel-gas cylinders be kept apart by distance or a fire-rated barrier when stored together.

Then the medical-gas layer. NFPA 99, the Health Care Facilities Code, governs how a hospital stores and handles medical gases, including keeping cylinders secured and segregating full from empty. The Compressed Gas Association's CGA Pamphlet P-1, Safe Handling of Compressed Gases in Containers, is the industry handling reference the OSHA rule points back to. And The Joint Commission's Environment of Care standards are how an accreditor checks that the hospital actually enforces all of this through written policy and staff competency.

Read together, these say the same thing in different voices. Keep cylinders upright and secured, protect the valve, segregate oxidizers from fuel gases, separate full from empty, and move them on equipment built for the job. The standards set the floor. Your facility policy is what staff are actually held to, and it can be stricter than the floor.

Is oxygen flammable or an oxidizer?

Oxygen does not burn on its own. It is an oxidizer, which means it makes other materials ignite more easily and burn faster and hotter. That distinction matters because it changes what you protect against. The danger is not that the oxygen catches fire, it is that anything flammable near a leaking cylinder burns far more violently in an oxygen-rich pocket of air.

This is why oil and grease must never touch an oxygen valve, regulator or fitting. Petroleum products can ignite on contact with high-pressure oxygen, with no spark needed. Keep hands, gloves and tools free of grease around oxygen fittings, and never lubricate an oxygen connection. During transport, keep cylinders away from open flame, heat and any ignition source, hold to a no-smoking rule along the cart route, and keep combustibles such as paper, cardboard and linens off the cart and out of the path. The oxidizer property is also why segregation from fuel gases shows up in the storage rules below.

Step by step - how to move an oxygen cylinder across a hospital

Move an oxygen cylinder by closing the valve and bleeding the regulator first, fitting the valve protection cap, inspecting the cylinder and cart, loading it upright into a secured rack, then transporting slowly with the cylinder restrained and the route clear. The sequence matters. Each step removes a specific hazard before the cylinder ever starts moving.

1. 1. Close and bleedClose the cylinder valve and bleed regulator pressureNever disconnect a regulator under pressure
2. 2. Cap the valveRefit the valve protection cap before movingThe valve is the most vulnerable part
3. 3. InspectCheck cylinder, cart and brake for damage or leaksNo oil or grease on oxygen fittings
4. 4. Secure uprightRestrain the cylinder upright by chain, strap or rackNever carry, drag or roll on the base
5. 5. Move slowTransport at walking speed, watch ramps and thresholdsNever leave a cart unattended on an incline
6. 6. Set, secure, connectSet the brake and secure the cylinder before connectingSeparate full from empty at storage

Step 1, close and bleed. Close the cylinder valve fully, then bleed the trapped pressure out of the regulator before you disconnect anything. Never break a connection that is still under pressure. A regulator released under load can whip or crack, and the sudden gas release is exactly the kind of uncontrolled discharge the whole procedure exists to prevent.

Step 2, cap the valve. On cylinders fitted for one, replace the valve protection cap before the cylinder moves. The cap is there to take the hit if the cylinder is knocked or dropped, protecting the most vulnerable part of the whole assembly. A capped cylinder that tips is a problem. An uncapped one that tips can be an emergency.

Step 3, inspect. Look the cylinder over for dents, corrosion or a hissing leak, and check the cart for damage and a brake that actually holds. Confirm no oil or grease is on the fittings. A thirty-second inspection before a move is cheaper than a dropped cylinder in an elevator.

Step 4, secure upright. Load the cylinder upright and restrain it with a chain, strap or fitted rack so the body cannot fall and the valve cannot swing into anything. This is the non-negotiable one. Never carry a cylinder cradled in your arms, never drag it, and never walk it on its base across the floor.

Step 5, move slow. Transport at walking speed with the load kept low and stable. Watch for ramps, door thresholds and elevator gaps that can jolt a cart, and slow down for every one. Never leave a loaded cart unattended on an incline, and never let a cylinder ride in an elevator or down a hallway unsecured.

Step 6, set, secure, connect. At the destination, set the brake and confirm the cylinder is still secured before you connect anything. When you store the cylinder rather than use it, keep it upright and separate the full ones from the empties so the next person grabs the right bottle. Connection is the last step, never the first.

How do you secure medical gas cylinders for transport?

Secure medical gas cylinders for transport by restraining each one upright with a chain, strap or fitted rack so the cylinder body and valve cannot move, then moving them on a wheeled cart rather than carrying or hand-trucking a loose bottle. Upright and restrained is the default state for any cylinder that is not actively in use. If it can tip, slide or roll, it is not secured.

The valve drives the method. Keep the protection cap on until the cylinder is connected, and remove or fully depressurize the regulator before a move so nothing fragile sticks out unguarded. A cylinder is at its safest when the valve is closed, capped and pointing straight up inside a restraint that holds the whole bottle still.

A purpose-built cylinder rack beats an improvised cart or carrying by hand for a simple reason. The rack matches the cylinder. Medical gas cylinders come in a range of sizes, and an M7, M9, C, D or E cylinder each has its own diameter and height, so a rack sized and shaped for the bottle holds it snug where a generic cart lets it rattle or lean.

There is a human cost the equipment addresses too. Manual cylinder handling, lifting, pushing and dragging heavy bottles over distance, is tied to back, shoulder and hand injuries among the staff who do it shift after shift. A wheeled cart removes the lift. A powered cart removes the push and pull forces on top of that, which is where the case for a motorized cylinder cart starts. If you are buying equipment for this, browse our powered medical gas cylinder carts and the wider range of motorized carts for hospitals and healthcare facilities to match a cart to your cylinder mix.

How should you store and segregate cylinders at the destination?

Store cylinders upright and secured in a ventilated area, keep full and empty separated and labeled, keep oxidizers like oxygen away from fuel gases, and hold the separation distance from combustibles that NFPA 99 and OSHA 1910.253 set. Storage is where a lot of the standards live, because a poorly stored cylinder is a hazard long after the move is over.

Separate full from empty and mark which is which, so staff in a hurry grab a charged cylinder and return the empty to the right place. Segregate oxidizers from flammable and fuel gases. Under the oxygen-fuel gas separation rule in 1910.253, oxygen and fuel-gas cylinders stored together are kept apart by a set distance or a fire-rated barrier rather than sitting side by side. Keep every cylinder upright, restrained and out of exit paths and busy aisles, where a knocked cylinder is both a leak risk and a blocked escape route. And store in a ventilated space away from heat, holding the combustible-separation distance the codes specify. The exact figure is the one in the standard your facility has adopted, so cite the code, not a vendor blog, for the number you put on a sign.

When does a powered medical gas cylinder cart make sense?

A powered medical gas cylinder cart makes sense when staff move full racks of cylinders over long hospital routes or up ramps, because the motor removes the manual push and pull forces behind the back, shoulder and hand injuries tied to manual cylinder handling. For a single cylinder over a short flat hop, a basic secured hand cart is fine. The powered cart earns its price when the load is heavy, the distance is real, or the route has a grade.

What a powered cart adds over a manual one is control. A motorized drive means nobody is straining against a loaded rack. An automatic holding brake parks the cart on a slope so it cannot roll when the operator stops, which is the exact moment a manual cart on a ramp turns dangerous. Variable speed keeps the move at a walking pace, and an emergency stop, horn and keyed power give an operator a way to halt the cart and keep it from wandering off when parked.

The powered cart built for in-hospital cylinder transport

1. #1
   Best overall

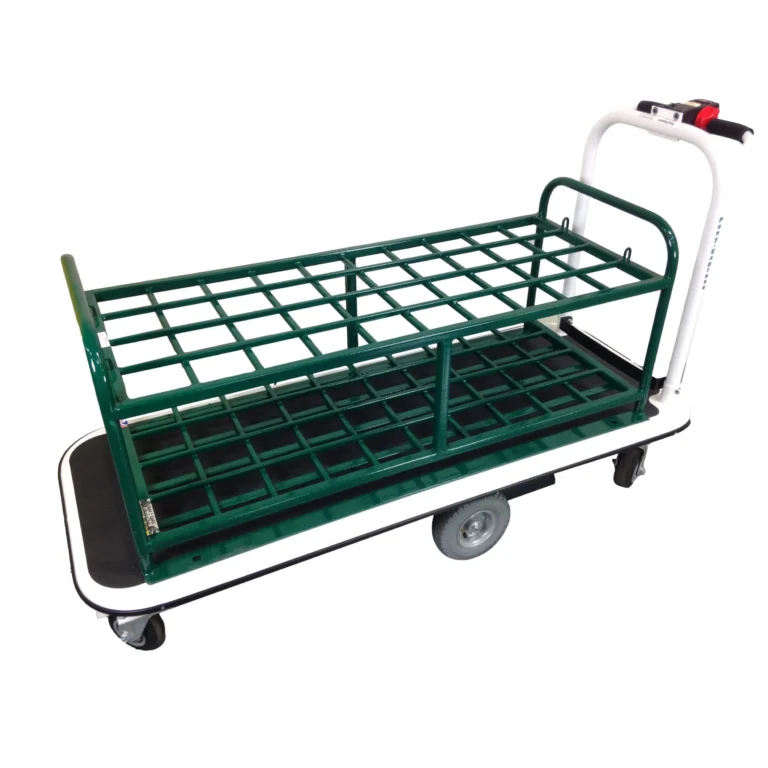

   EK Tech Pony Express Motorized Medical Gas Cylinder Cart

   EK Tech$4,742.37

   The one product in our catalog built specifically for safe in-hospital cylinder transport. Its racks hold and protect 24, 32, 40 or 48 cylinders and accept M7, M9, C, D or E bottles with a protective coating, so the cylinders ride secured and upright rather than rattling on a generic cart. The motorized center-wheel-drive base removes the manual push and pull forces tied to back, shoulder and hand injuries, and the regenerative and automatic holding brakes keep a loaded rack from rolling on a 6 degree incline.

   • Pros
   • Cylinder racks for 24, 32, 40 or 48 M7, M9, C, D or E cylinders with protective coating
   • Standard 1500 or 2000 lbs capacity decks with larger payloads available
   • 0-3 mph with High and Low speed control and up to 10 miles per charge
   • Regenerative and automatic holding brake, horn, key switch and emergency stop on a 39 inch handle
   • In stock and made in the USA

   • Cons
   • At $4,742.37 it is built for facilities that move full racks over distance, not for moving a single cylinder a short flat hop
   • It is a handling aid only and does not by itself satisfy NFPA 99, OSHA 1910.101 or 1910.253 or your facility policy

   See price & details

• 24, 32, 40 or 48cylindersCylinders per rackAccepts M7, M9, C, D or E
• 1500 or 2000lbsDeck capacityLarger payloads available
• 0-3mphSpeedVariable High / Low control
• Up to 10milesRange per chargeOn-board smart charger
• 6degreesIncline ratingAutomatic holding brake
• 39inchesHandle heightHorn, key switch, emergency stop

The cart purpose-built for this job is the EK Tech Pony Express Motorized Medical Gas Cylinder Cart. Its racks accept M7, M9, C, D or E cylinders with a protective coating that cuts noise and guards the bottles in transit, it climbs a 6 degree incline with an automatic holding brake, and it adds a horn, a key switch and an emergency stop on a 39 inch handle. At $4,742.37 and in stock, it is the one product in our catalog built specifically for safe in-hospital cylinder transport. The card above and the stat strip carry the full spec.

One honest guardrail, because this is a safety topic. A powered cart is a handling aid. It does not, by itself, satisfy NFPA 99, OSHA 1910.101 or 1910.253, or your facility policy. Buying the cart does not check a compliance box. Staff still close and cap valves, still secure each cylinder, still segregate gases and still follow the named codes and the facility's written program. The cart makes the safe method easier to follow, which is its real value, not a substitute for the method.

Raphael's rule of thumb If two people are tag-teaming a loaded cylinder rack down a corridor because one cannot hold it on the ramp alone, you have already justified a powered cart. The injury you are pricing against is not the dramatic dropped-cylinder story, it is the slow accumulation of back and shoulder strain on the porter who moves that rack twenty times a shift. A motorized base pays for itself in the claims you never file.

Cylinder cart vs flat-deck powered cart - which do hospitals need?

Hospitals that move racked cylinders need the dedicated cylinder cart with rack restraint, while those moving mixed flat loads can use the same EK Tech powered base as a flat-deck platform cart, so the choice comes down to whether the cargo is cylinders that must be secured and protected or general goods on a deck.

The cylinder cart, product 38414, holds and protects cylinders in fitted racks, which is the right pick whenever the load is oxygen or other medical gas bottles. The Pony Express 1031 motorized platform cart, product 38296, shares the same powered center-wheel-drive base but carries a flat deck instead of cylinder racks, so it suits mixed flat loads rather than bottles. The 1031 runs 1,500 to 2,000 lbs across its sub-models on an 11.5 inch deck that scales from 25.5 or 34.5 inches wide by 40 to 61 inches long, with a variable speed range of 0 to 1.5 mph on low and 0 to 3.0 mph on high, and the same regenerative and automatic holding brake plus an electromagnetic parking brake. Its incline rating is not published, so the table below leaves that cell as not specified rather than inventing a figure. At $3,823.79 it is the flat-deck sibling in the same family.

EK Tech powered cart spec comparison - dedicated cylinder cart vs 1031 flat-deck base

Cart	Weight Capacity	Speed	Incline Rating	Cylinder Racks / Deck	Braking
EK Tech Pony Express Motorized Medical Gas Cylinder Cart	Standard 1500 or 2000 lbs capacity decks, larger payloads available	0-3 mph	6°	Racks for 24, 32, 40, or 48 cylinders - accepts M7, M9, C, D, or E cylinders	Regenerative braking and automatic holding brake
Pony Express 1031 Motorized Platform Cart (up to 2,000 lbs)	1,500 to 2,000 lbs (per model)	0 to 1.5 mph low setting, 0-3.0 mph high setting	Not specified	Flat deck 11.5" deck height, 25.5" or 34.5" wide x 40" to 61" long (per model)	Regenerative braking with automatic holding brake, electromagnetic parking brake

The same EK Tech line covers more hospital jobs without changing the drive base. The Pony Express Motorized Linen Cart handles bulk linen loads, and the 1031-SM01 Mailroom Cart moves internal mail and small parcels, both for non-cylinder work. For facilities that already own wheeled cylinder trolleys, the Pony Express 1061-HD Electric Powered Tugger tows them behind a hitch rather than carrying them on a deck, which is the right tool when you are moving carts you already have rather than buying new racks. If you are still deciding on deck size and load, our guide to how to spec a motorized platform cart by load and deck size works through the platform ladder, and our guide to choosing the right battery for a powered hospital cart covers runtime and charging so the cart lasts a full shift.

Frequently asked questions

Frequently asked questions

Can you transport an oxygen cylinder lying down?

No. Transport medical oxygen cylinders upright and secured, not lying down. A cylinder on its side can roll, slide off a cart and let the valve strike a hard surface, and a sheared valve turns a high-pressure cylinder into an uncontrolled projectile. Stand each cylinder up and restrain it with a chain, strap or fitted rack so the body and valve cannot move. The upright-and-secured rule runs through OSHA 1910.101, NFPA 99 and CGA P-1, and your facility policy will say the same. The only safe horizontal position is none during routine in-hospital transport.

Do you need to put the valve cap on before moving an oxygen cylinder?

Yes, on any cylinder fitted for a valve protection cap, replace the cap before the cylinder moves. The cap protects the valve, which is the most vulnerable part of the assembly and the one that turns a dropped cylinder into an emergency if it shears. Before fitting the cap, close the cylinder valve and bleed the pressure out of the regulator so you are never disconnecting under load. Then cap the valve, load the cylinder upright into a secured rack, and move. A capped cylinder that tips is a manageable problem. An uncapped one is not.

How far apart must oxygen and fuel gas cylinders be kept?

Oxygen is an oxidizer and must be segregated from flammable and fuel gases in storage, kept apart by a set distance or a fire-rated barrier rather than stored side by side. The exact separation distance is the figure in the standard your facility has adopted, drawn from OSHA 29 CFR 1910.253 and NFPA 99, so cite the code your hospital follows for the number you put on a sign or label rather than a vendor figure. The principle holds everywhere. Keep oxygen away from fuel gases, away from heat and ignition sources, and away from combustibles such as paper and linens.

Is oxygen flammable?

No, oxygen does not burn on its own. It is an oxidizer, which means it makes other materials ignite more easily and burn faster and hotter. That is why oil and grease must never touch an oxygen valve, regulator or fitting, since petroleum products can ignite on contact with high-pressure oxygen with no spark. During transport, keep cylinders away from open flame, heat and ignition sources, hold to a no-smoking rule along the cart route, and keep combustibles off the cart and out of the path. The hazard is not the oxygen catching fire, it is everything flammable nearby burning far more violently in an oxygen-rich pocket.

Who can move medical gas cylinders in a hospital?

Trained, competent staff who follow the facility's written handling policy move medical gas cylinders, which in practice means porters, respiratory therapists, nurses and facilities techs the hospital has trained and signed off. The named standards do not list job titles. They set the handling requirements, and The Joint Commission's Environment of Care standards expect the hospital to enforce those through written policy and documented staff competency. So the real answer is whoever your facility has trained and authorized for the task, following the procedure, not whoever happens to be nearest the cylinder. We equip the move, we do not set your training program.

What is the safest way to move a full rack of oxygen cylinders?

The safest way to move a full rack of oxygen cylinders over distance or a ramp is a powered cylinder cart that secures each bottle upright and carries the load under motor power, so nobody strains against the rack and an automatic holding brake parks it on a slope. The EK Tech Pony Express Motorized Medical Gas Cylinder Cart carries racks for 24, 32, 40 or 48 M7, M9, C, D or E cylinders, runs 0-3 mph with an automatic holding brake on a 6 degree incline, and lists at $4,742.37 in stock. A powered cart is a handling aid, not a compliance shortcut. Staff still cap valves, secure each cylinder and follow the named codes and facility policy.

Sources and standards

The handling rules in this guide come from federal regulation, the medical-gas code, the compressed-gas industry handling reference and the accreditor that checks enforcement. Every product number traces to a manufacturer spec sheet. The full list is below.

Sources & references

1. OSHA 29 CFR 1910.101 - Compressed gases (general requirements) Authority
2. OSHA 29 CFR 1910.253 - Oxygen-fuel gas welding and cutting (storage and separation) Authority
3. NFPA 99 - Health Care Facilities Code (medical gas storage and handling) Authority
4. Compressed Gas Association - CGA P-1 Safe Handling of Compressed Gases in Containers Authority
5. The Joint Commission - Environment of Care standards Authority
6. EK Tech Pony Express Motorized Medical Gas Cylinder Cart - specifications (manufacturer, product 38414)
7. Pony Express 1031 Motorized Platform Carts - specifications (manufacturer, product 38296)
